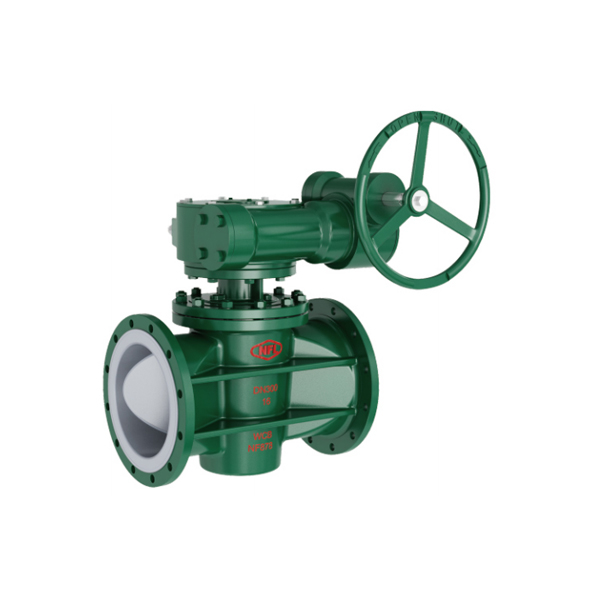

Nominal Pressure: PN0.6~1.6(MPa)(fully lined)
Nominal diameter: DN15~300(mm)
Design and Manufacturing | GB/T12240 |
Structure length | GB/T 12221 |
Flange Size | HG/T 20592(or as required by the contract) |
pressure test | GB/T 13927 |
symbolize | GB/T 12220 |
fill | GB/T 12252 |
manually operated | X43F4 X43PFA X43F46 | Full Lining Full Lining Full lining | aerodynamic | X643F4 X643PFA X643F46 | Full Lining Full Lining Full lining |
worm-gear rotation | X343F4 X343PFA X343F46 | Full Lining Full Lining Full lining | electric powered | X943F4 X943PFA X943F46 | Full Lining Full Lining Full lining |
serial number | Part Name | gray cast iron | carbon steel | stainless steels |
Z | C | P | ||
| 1 | Valve body, valve cover | HT250 | WCB | CF8 |
2 | Lining/seat | PTFE(F4)PFA FEP(F46) | ||
3 | stopper | WCB | ||
4 | Adjustment shims | RPTFE(Enhanced F4) | ||
5 | O-ring | VITION(fluoroelastomer) | ||

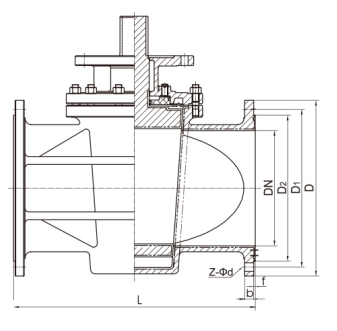

Nominal diameter DN(mm) | Standard value (unit: mm) | reference point | ||||||
L | D | D₁ | D2 | f | b | Z-Φd | W(kg) | |
PN1.0(MPa) | ||||||||
15 | 108 | 95 | 65 | 45 | 3 | 16 | 4-Φ14 | 1.6 |
20 | 117 | 105 | 75 | 58 | 3 | 18 | 4-Φ14 | 2.4 |
25 | 127 | 115 | 85 | 68 | 3.5 | 18 | 4-Φ14 | 3.4 |
32 | 140 | 140 | 100 | 78 | 3.5 | 18 | 4-Φ18 | 4.8 |
40 | 165 | 150 | 110 | 88 | 3.5 | 18 | 4-Φ18 | 6.0 |
50 | 178 | 165 | 125 | 102 | 4 | 18 | 4-Φ18 | 8.8 |
65 | 190 | 185 | 145 | 122 | 4 | 18 | 8-Φ18 | 11.5 |
80 | 203 | 200 | 160 | 138 | 4 | 20 | 8-Φ18 | 15.2 |
100 | 229 | 220 | 180 | 158 | 4.5 | 20 | 8-Φ18 | 18.5 |
125 | 254 | 250 | 210 | 188 | 4.5 | 22 | 8-Φ18 | 22.5 |
150 | 267 | 285 | 240 | 212 | 4.5 | 22 | 8-Φ22 | 48 |
200 | 292 | 340 | 295 | 268 | 5 | 24 | 8-Φ22 | 65 |
250 | 330 | 395 | 350 | 320 | 5 | 26 | 12-Φ22 | 88 |
Nominal diameter DN(mm) | Standard value (unit: mm) | reference point | ||||||
L | D | D1 | D₂ | f | b | Z-Φd | W(kg) | |
PN1.6(MPa) | ||||||||
15 | 108 | 95 | 65 | 45 | 3 | 16 | 4-Φ14 | 1.6 |
20 | 117 | 105 | 75 | 58 | 3 | 18 | 4-Φ14 | 2.4 |
25 | 127 | 115 | 85 | 68 | 3.5 | 18 | 4-Φ14 | 3.4 |
32 | 140 | 140 | 100 | 78 | 3.5 | 18 | 4-Φ18 | 4.8 |
40 | 165 | 150 | 110 | 88 | 3.5 | 18 | 4-Φ18 | 6.0 |
50 | 178 | 165 | 125 | 102 | 4 | 18 | 4-Φ18 | 8.8 |
65 | 190 | 185 | 145 | 122 | 4 | 18 | 8-Φ18 | 11.5 |
80 | 203 | 200 | 160 | 138 | 4 | 20 | 8-Φ18 | 15.2 |
100 | 229 | 220 | 180 | 158 | 4.5 | 20 | 8-Φ18 | 18.5 |
125 | 254 | 250 | 210 | 188 | 4.5 | 22 | 8-Φ18 | 22.5 |
150 | 267 | 285 | 240 | 212 | 4.5 | 22 | 8-Φ22 | 48 |
200 | 292 | 340 | 295 | 268 | 5 | 24 | 12-Φ22 | 65 |
250 | 330 | 405 | 355 | 320 | 5 | 26 | 12-Φ26 | 88 |
